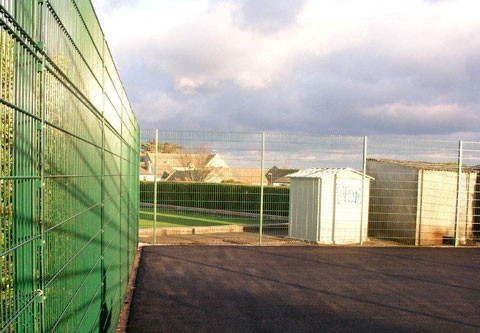

Twin Wire Mesh Systems

Call for Price on 01438-880209

For more information such as different heights of fencing or general price enquiries please contact us with your post code and contact details stating all sizes and quantities you require and we will get back to you with a quotation price.

Description

For more information such as different heights of fencing or general price enquiries please email us with your post code and contact details and state all sizes + quantity you require and we will get back to you with your quotation price.

Specification

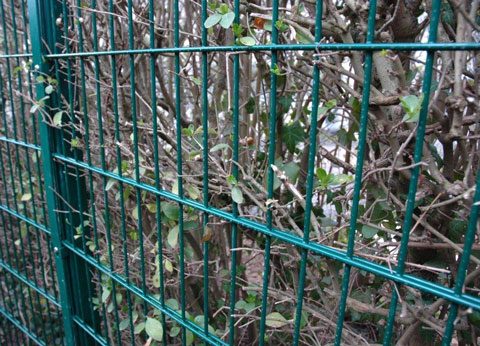

Mesh

  • Mesh size: 200mm x 50mm.
  • Width: 2506mm.
  • Height: 630mm to 2430mm and 3030mm in 200mm increments.
  • Horizontal wires: Dual 8mm.
  • Vertical Wires: Single 6mm.
  • Spike to top edge: 30mm.
  • Heights to 6000mm achievable as standard.

Panel Variations:

  • “Double 6” with dual 6mm horizontal wires.
  • “Double 8 Plus” vertical wires at 25mm centres.

Posts

  • Construction: Rectangular Hollow Section.
  • Post centres: 2520mm approx.
  • Post Caps: Plastic (welded steel on request).
  • Baseplates: Not supplied as standard.

Post Section

  • To 2400mm high: 60mm x 40mm.
  • To 3800mm high: 80mm x 40mm.
  • To 5000mm high: 100mm x 50mm.
  • To 6000mm high: 120mm x 60mm.

Post Options

  • Baseplates or dowells.
  • Plates for mounting on side of walls.
  • Baseplates holed for fixing to concrete or top of walls.
  • Cranked or straight extensions for barbed or razor wire.
  • Cranked extensions to receive mesh panels.
  • Doglegged cranks at base to go above walls.

Finish

  • Hot dipped galvanised.
  • Galvanised and polyester powder coated.
  • Standard colours: RAL 6005 green, 9005 black, 5010 blue, 3000 red, 9010 white.
  • Other colours: All other RAL colours available.

Fixings

  • Full length clamp strip: 40mm x 5mm.
  • Mountings: Steel retaining brackets.
  • Bolts: Anti-vandal pin hex M8 x 40mm.
  • Fixings: Threaded inserts set at 400mm max. (200mm on request).
  • Anti-vibration: EPDC rubber washers available on request.

An installation service is available for the North Hertfordshire area.

Delivery Information

The cost of delivery is calculated based on the distance by road from your address to our Sales Centre in Hertfordshire.

Add a product to the basket and then enter your postcode to find out what it is for you.

We will contact you prior to delivery to check your order and confirm a delivery date.

More Information

All prices include VAT.
